1.Aplikasi- Kabel LiYCY:
Instalasi dalam ruangan untuk kontrol elektronik dan pengatur mesin kantor peralatan.
Kabel ini memiliki fitur untuk penyaringan yang membelokkan pengaruh listrik eksternal dan memastikan transmisi cerobong asap yang tepat.
 |
 |
 |
2.Standar:
Umumnya untuk BS6500 dan VDE0250

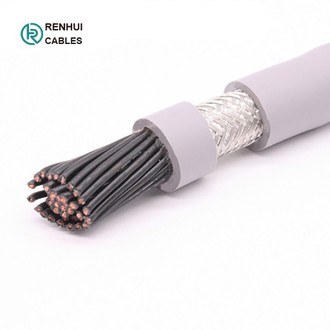

3. Struktur Kabel - Kabel LiYCY:
 |
 |
-Konduktor:
Untai Kawat Halus dari untaian Tembaga Anil Polos ke BS6360.
-Isolasi:
PVC
-Meletakkan:
Inti dipelintir bersama
-Pembungkus:
Pita poliester
-Layar:
Jalinan Kawat Tembaga Kaleng
-Sarung:
FR-PVC abu-abu
4.Peringkat Tegangan:
0.14 - 0.34 mm2 250v 1000v
0.5 - 1.5 mm2 300v 2000v
2.5 - 6 mm2 500v 2000v
5.Kisaran Suhu:
Statis -20 derajat ke plus 80 derajat ,Melenturkan -5 derajat ke plus 70 derajat
6.Radius Tekuk Minimum:
Memperbaiki: 6 x Diameter Kabel, Melenturkan: 15 x Diameter Kabel
7.Identifikasi Inti :
2 Inti: Putih Coklat
3 Inti: Putih Coklat Hijau
4 Inti : Putih Coklat Hijau Kuning
5 Inti: Putih Coklat Hijau Kuning Abu-abu
Ukuran lebih besar: Kode Angka, Inti Hitam dengan Angka Putih plus Hijau/Kuning
8. Warna Sarung
Abu-abu
9. Lembar Data Kabel- Kabel LiYCY:
|
Inti * mm2 |
Berat Kabel (kg/km) |
Diameter keseluruhan |
|
1 x 0.14 |
16 |
3.6 |
|
2 x 0.14 |
20 |
3.8 |
|
3 x 0.14 |
25 |
4.0 |
|
4 x 0.14 |
30 |
4.3 |
|
5 x 0.14 |
36 |
4.6 |
|
6 x 0.14 |
40 |
5.0 |
|
7 x 0.14 |
41 |
5.2 |
|
8 x 0.14 |
44 |
5.6 |
|
10 x 0.14 |
56 |
6.3 |
|
12 x 0.14 |
60 |
6.4 |
|
14 x 0.14 |
65 |
6.7 |
|
16 x 0.14 |
81 |
7.2 |
|
18 x 0.14 |
93 |
7.6 |
|
21 x 0.14 |
103 |
8.3 |
|
24 x 0.14 |
117 |
9.0 |
|
25 x 0.14 |
120 |
9.0 |
|
27 x 0.14 |
124 |
9.1 |
|
30 x 0.14 |
136 |
9.4 |
|
36 x 0.14 |
160 |
10.0 |
|
40 x 0.14 |
170 |
10.3 |
|
44 x 0.14 |
186 |
11.1 |
|
52 x 0.14 |
200 |
11.5 |
|
61 x 0.14 |
250 |
12.1 |
|
1 x 0.25 |
17 |
3.1 |
|
2 x 0.25 |
30 |
4.5 |
|
3 x 0.25 |
37 |
5.1 |
|
4 x 0.25 |
44 |
5.2 |
|
5 x 0.25 |
51 |
5.7 |
|
6 x 0.25 |
55 |
6.1 |
|
7 x 0.25 |
60 |
6.4 |
|
8 x 0.25 |
77 |
7.1 |
|
10 x 0.25 |
93 |
8.1 |
|
12 x 0.25 |
104 |
8.4 |
|
14 x 0.25 |
115 |
8.7 |
|
16 x 0.25 |
132 |
8.9 |
|
18 x 0.25 |
137 |
9.4 |
|
21 x 0.25 |
173 |
10.4 |
|
24 x 0.25 |
184 |
11.4 |
|
25 x 0.25 |
190 |
11.5 |
|
27 x 0.25 |
198 |
11.6 |
|
30 x 0.25 |
212 |
11.9 |
|
36 x 0.25 |
238 |
12.7 |
|
40 x 0.25 |
260 |
13.1 |
|
44 x 0.25 |
290 |
14.3 |
|
52 x 0.25 |
333 |
14.9 |
|
61 x 0.25 |
382 |
15.8 |
|
2 x 0.34 |
33 |
5.0 |
|
3 x 0.34 |
42 |
5.4 |
|
4 x 0.34 |
49 |
5.8 |
|
5 x 0.34 |
59 |
6.1 |
|
6 x 0.34 |
64 |
6.6 |
|
7 x 0.34 |
69 |
6.7 |
|
8 x 0.34 |
84 |
7.4 |
|
10 x 0.34 |
106 |
8.5 |
|
12 x 0.34 |
119 |
8.7 |
|
14 x 0.34 |
132 |
9.1 |
|
16 x 0.34 |
146 |
9.6 |
|
18 x 0.34 |
188 |
10.1 |
|
21 x 0.34 |
193 |
10.9 |
|
24 x 0.34 |
213 |
12.0 |
|
27 x 0.34 |
232 |
12.3 |
|
30 x 0.34 |
253 |
12.7 |
|
36 x 0.34 |
292 |
13.6 |
|
40 x 0.34 |
318 |
14.0 |
|
52 x 0.34 |
400 |
15.8 |
|
61 x 0.34 |
454 |
16.6 |
|
2 x 0.5 |
42 |
5.4 |
|
3 x 0.5 |
51 |
5.8 |
|
4 x 0.5 |
61 |
6.5 |
|
7 x 0.5 |
98 |
7.8 |
|
12 x 0.5 |
156 |
10.1 |
|
18 x 0.5 |
215 |
11.8 |
|
25 x 0.5 |
314 |
14.4 |
|
2 x 0.75 |
56 |
6.7 |
|
3 x 0.75 |
70 |
7.1 |
|
4 x 0.75 |
95 |
7.6 |
|
5 x 0.75 |
130 |
8.2 |
|
7 x 0.75 |
168 |
8.9 |
|
12 x 0.75 |
232 |
12.0 |
|
18 x 0.75 |
315 |
13.9 |
|
25 x 0.75 |
418 |
16.5 |
|
30 x 0.75 |
500 |
18.0 |
|
2 x 1 |
84 |
7.7 |
|
3 x 1 |
110 |
8.5 |
|
4 x 1 |
130 |
9.2 |
|
5 x 1 |
156 |
9.9 |
|
7 x 1 |
192 |
10.7 |
|
12 x 1 |
265 |
13.7 |
|
18 x 1 |
380 |
15.9 |
|
25 x 1 |
475 |
17.5 |
|
34 x 1 |
629 |
21.5 |
|
2 x 1.5 |
97 |
8.1 |
|
3 x 1.5 |
125 |
8.9 |
|
4 x 1.5 |
165 |
9.7 |
|
5 x 1.5 |
193 |
10.5 |
|
7 x 1.5 |
245 |
11.3 |
|
12 x 1.5 |
365 |
14.5 |
|
18 x 1.5 |
553 |
16.9 |
|
25 x 1.5 |
720 |
20.1 |
|
30 x 1.5 |
776 |
20.7 |
|
42 x 1.5 |
1140 |
25.5 |
|
2 x 2.5 |
148 |
10.1 |
|
3 x 2.5 |
188 |
10.6 |
|
4 x 2.5 |
236 |
11.6 |
|
5 x 2.5 |
270 |
12.6 |
|
7 x 2.5 |
340 |
13.7 |
|
12 x 2.5 |
585 |
18.5 |
|
18 x 2.5 |
725 |
19.7 |
|
3 x 4 |
250 |
12.4 |
|
4 x 4 |
302 |
13.5 |
|
5 x 4 |
370 |
14.8 |
|
7 x 4 |
473 |
16.1 |
|
3 x 6 |
285 |
13.9 |
|
4 x 6 |
412 |
15.2 |
|
5 x 6 |
505 |
16.7 |
|
4 x 10 |
620 |
20.8 |
|
5 x 10 |
796 |
22.9 |
|
4 x 16 |
1090 |
23.2 |
|
5 x 16 |
2070 |
25.6 |
|
4 x 25 |
1787 |
28.2 |
|
5 x 25 |
2047 |
31.1 |
|
4 x 35 |
2142 |
31.5 |
10.Paket: Ekspor drum kayu atau kotak kayu:
